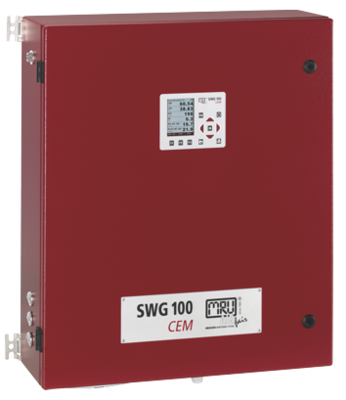

SWG 100 CEM
Low cost, non complying stationary analyser for continuous emission monitoring and combustion checking
O2 CO NO NO2 SO2 CO2
SWG 100 CEM is designed for the use in the harh industrial environment of different combustion sites where flue gas emissions must be continuously monitored, e.g.:
- Small power plants, small gas turbines
- Cogeneration heat and power engines (CHP)
- Waste incinerators, ovens and kilns
- Industrial heaters and dryers
- Food industry steam boilers
- Biomethane and methane boilers
- Ethanol and palm oil plants
Basic-Equipment
- Field replaceable, plug&play pre-calibrated sensors
- Very compact industrial design, for up to 6 gas simultaneous measurement
- Use of low cost but reliable electrochemical cells for O2, CO, NO, NO2, SO2 and an infrared module (NDIR) for CO2 measurement
- Advanced sample gas preparation for fast and reliable measurements
- Flexible platform can be used for various combustion applications
- Direct and continuous / discontinuous measurement, with pressure and temperature
- Compensation of all main flue gas parameters
- External measurements (temperature, pressure, etc) by reading of ext. standard signal
- Analyser system can be configured with different gas sampling probes and sampling lines to optimize the sample gas preparation (Option)
- Simple installation, ready to run delivery and easy to maintain
Technical Data
Measuring range
| O2 | 0 … 25 % (electrochemical) |
| CO | 0 … 10.000 ppm (electrochemical) |
| NO | 0 … 4.000 ppm (electrochemical) |
| NO2 | 0 … 1.000 ppm (electrochemical) |
| SO2 | 0 … 4.000 ppm (electrochemical) |
| CO2 | 0 … 40 % (NDIR) |
Dimensions and other data
| Display | 3,5″ TFT color and backlit display |
| Operating temperature | +5°C…+45°C standard, +5°C…+55°C with Vortec cooler, -10°C…+45°C with cabinet heater |
| Protection | IP 54 |
| Power supply | Universal 90-240 Vac/47-63 Hz/90 W, 300 W with cabinet heater |
| Weight | approx. 25 kg |
| Dimensions | (H x W X D) 600 x 700 x 210 mm for wall or rack mounting |
